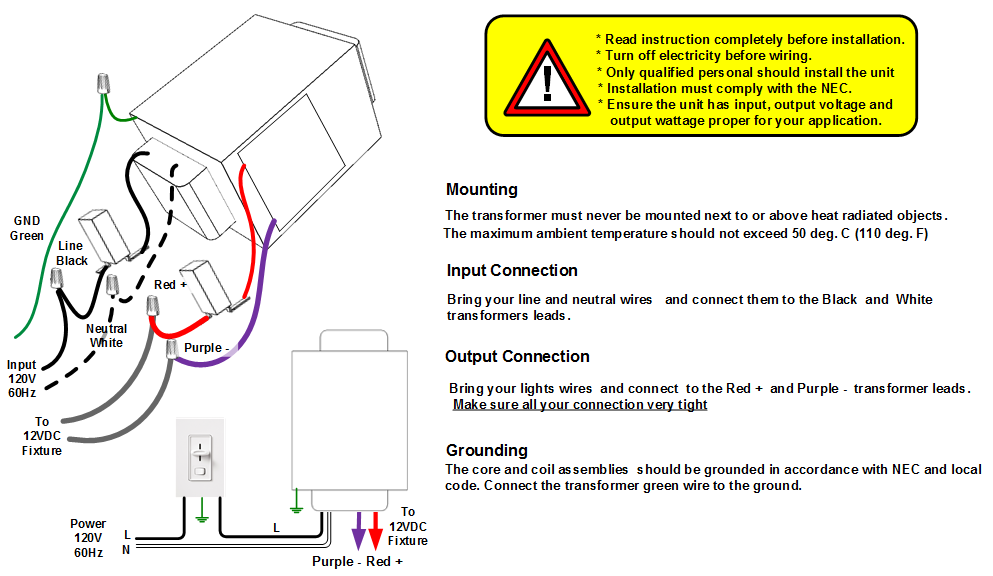

Installation Instruction Download

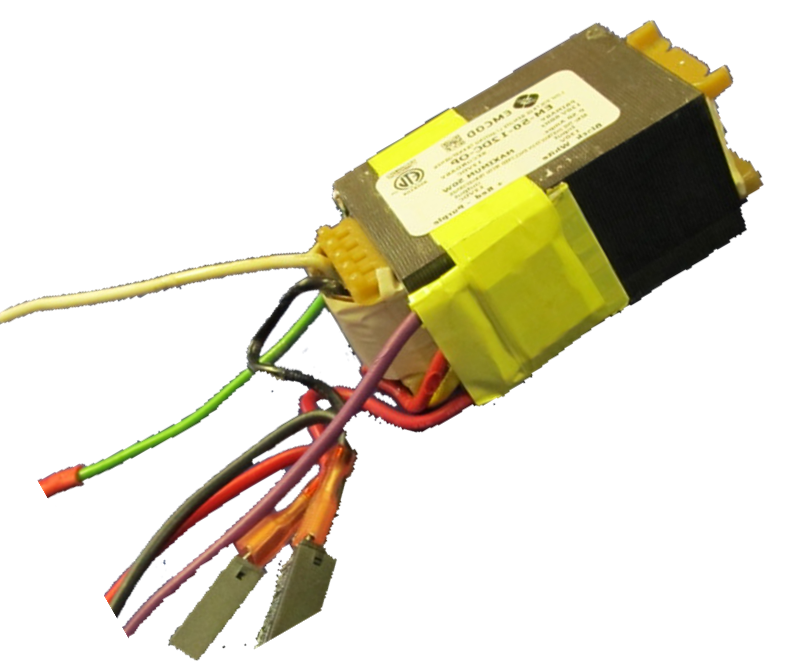

EOM5S12DC
Class 2 Magnetic
4008104
Conforms to UL STD. 1310
Certified to CSA
STD. C22.2 №
223
model
EM5
Link to certification
Electrical Parameters
Input Voltage:
120V 60Hz
Max. input current:
0.05A
at full load
Output voltage without load:
13.5VDC
Output voltage fully loaded:
11.6VDC
Max. Total Wattage:
5W
Max. Output Current:
0.4A
Efficiency:
85%
