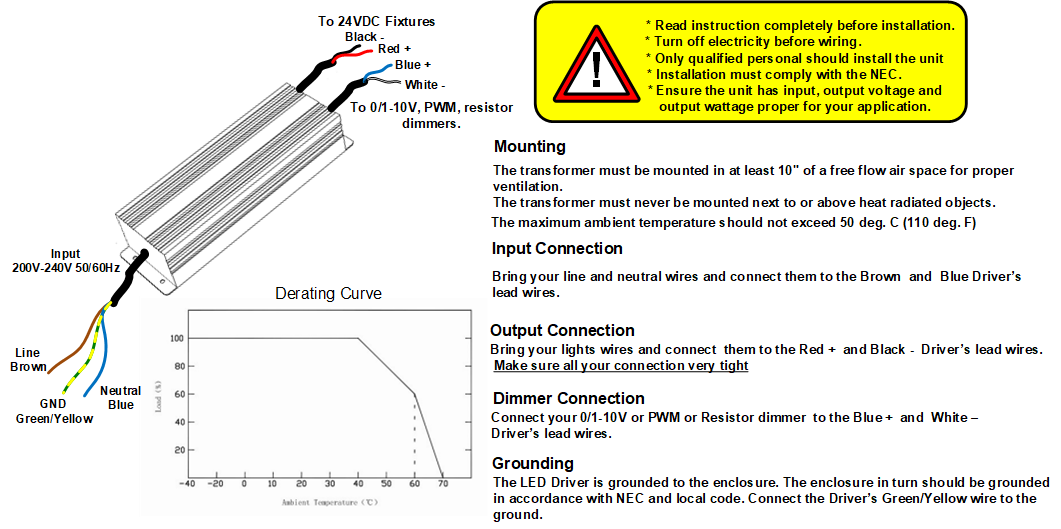

Installation Instruction Download

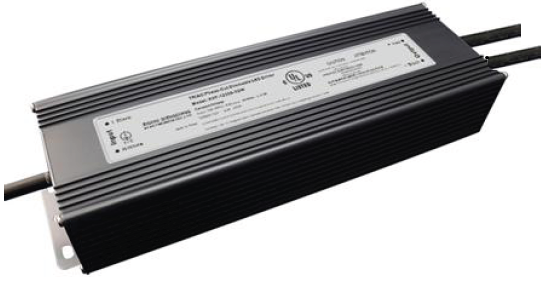

ECV100-24DC-EU
Electronic Outdoor UNIV 5 in 1 dimming
Aluminum Enclosure
Electrical Parameters
Input Voltage:
230V 50/60Hz
Max. input current:
0.62A
at full load
Output voltage without load:
24.1VDC
Output voltage fully loaded:
24VDC
Max. Total Wattage:
100W
Max. Output Current:
4.2A
Efficiency:
84%
Load regulation:
2%
Ripple:
0%
