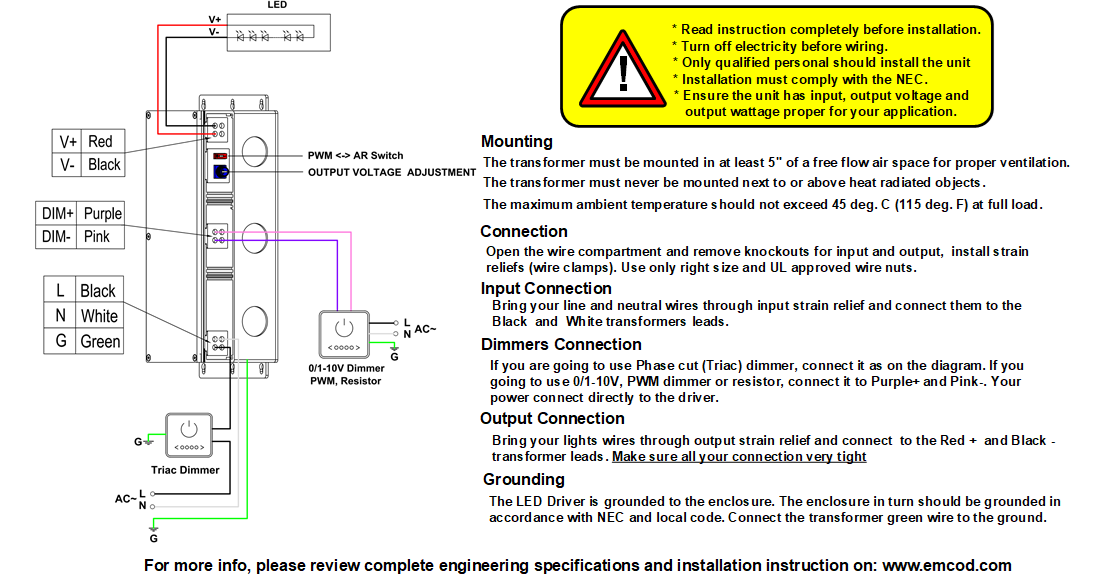

Installation Instruction Download

Spec Sheet Download

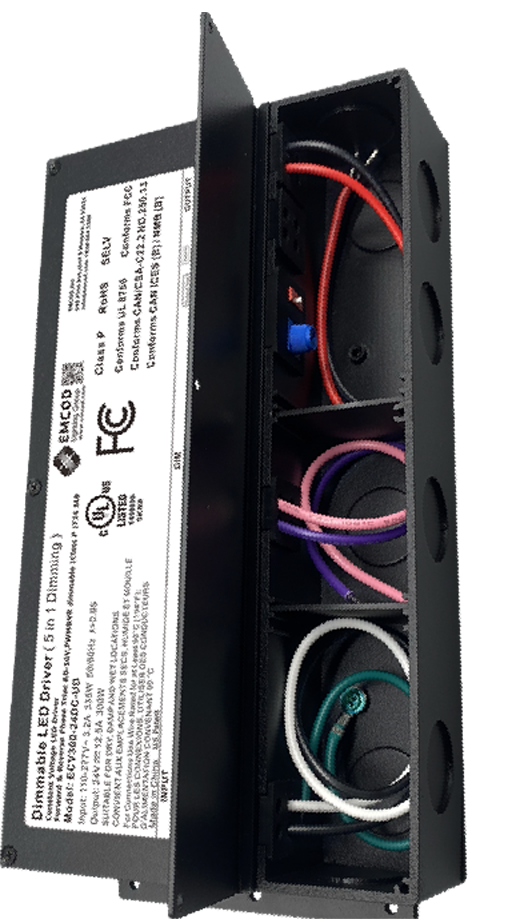

ECV300-12/24/36/48VDC-UD-2G

Electronic UNIV 5 in 1 dimming

E498696	Conforms to UL STD. 8750
	Certified to CSA STD. C22.2 № 250.13

Electrical Parameters

Input Voltage:	110-277V 50/60Hz
Max. input current:	2A at full load
Output voltage without load:	12/ 24/ 36/ 48VDC
Output voltage fully loaded:	11.9/ 23.9/ 35.8/ 47.8VDC
Max. Output Current:	25/ 12.5/ 8.3/ 6.3A
Efficiency:	93%
Load regulation:	0.5%
Ripple:	0%

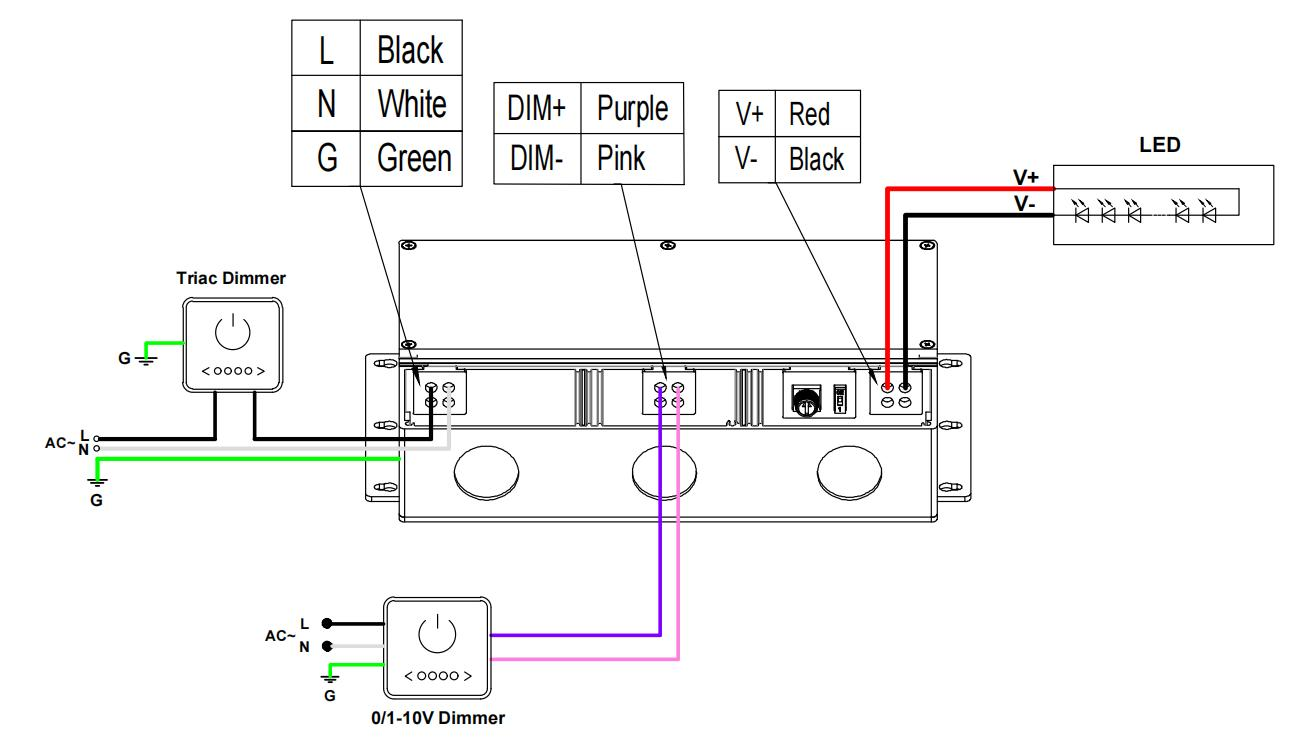

Electrical Diagram
