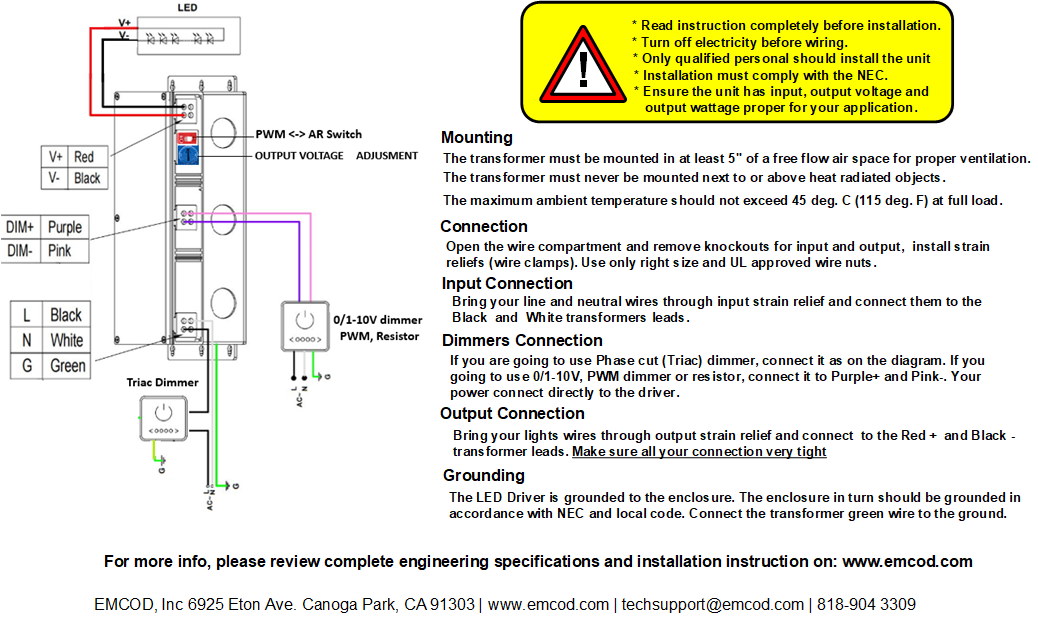

Installation Instruction Download
Spec Sheet Download

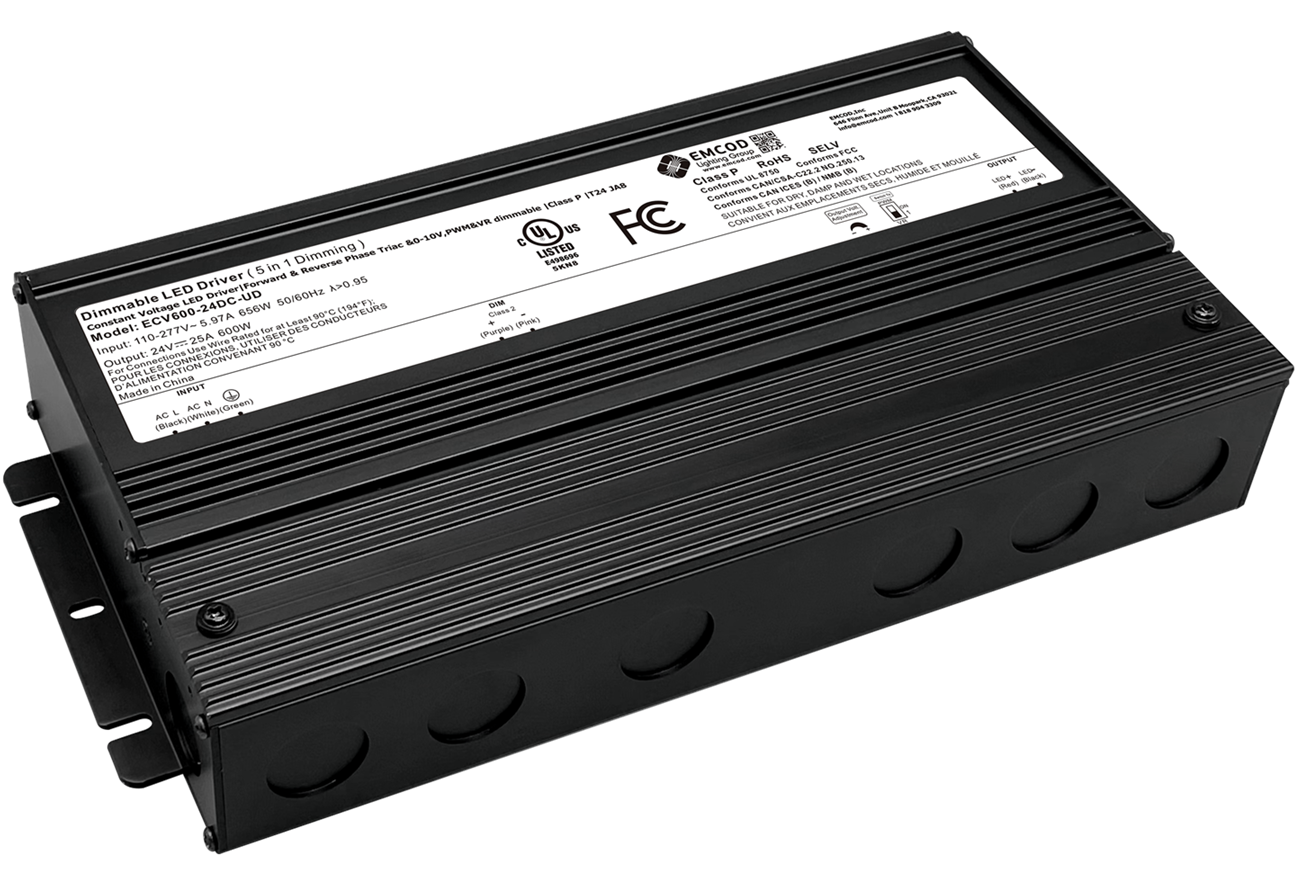

ECVXXX(12/24/36/48)D
Outdoor UNIV 5 in 1 dimming
Black Powder Coated Steel Enclosure
Conforms to UL STD. 8750
Certified to CSA
STD. C22.2 №
250.13
Link to certification
Electrical Parameters
Input Voltage:
110-277V 50/60Hz
Max. input current:
5.97A
at full load
Output voltage without load:
24/ 36/ 48/ 0VDC
Output voltage fully loaded:
23/ 35/ 47/ 0VDC
Max. Total Wattage:
600W
Max. Output Current:
25/ 16.7/ 12.5/ 0A
Efficiency:
90%
Load regulation:
0.5%
Ripple:
0%
