Installation Instruction Download
Spec Sheet Download

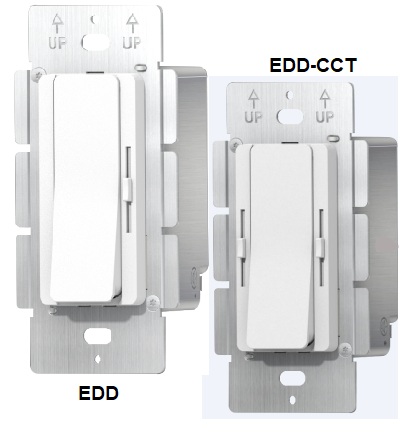

EDD60-24DC-CCT
Class 2 Electronic Outdoor Build In Dimmer
Aluminum Enclosure
Conforms to UL STD. 8750 and 1310
Certified to CSA
STD. C22.2 №
250.13
Link to certification
Electrical Parameters
Input Voltage:
120V 50/60Hz
Max. input current:
0.6A
at full load
Output voltage without load:
24V
Output voltage fully loaded:
23.8V
Max. Total Wattage:
60W
Max. Output Current:
2.5A
Efficiency:
90%
Load regulation:
2%
Ripple:
0%
