Installation Instruction Download

Spec Sheet Download

EDD160C2-24DC

Electronic Build In Dimmer
Aluminum Enclosure

	Conforms to UL STD. 8750
	Certified to CSA STD. C22.2 № 250.13

Electrical Parameters

Input Voltage:	120V 50/60Hz
Max. input current:	1.5A at full load
Output voltage without load:	24VDC
Output voltage fully loaded:	23.8VDC
Max. Total Wattage:	160W	Max. per circuit:80W
Max. Output Current:	6.6A per circuit.
Efficiency:	93%
Load regulation:	1%
Ripple:	0%

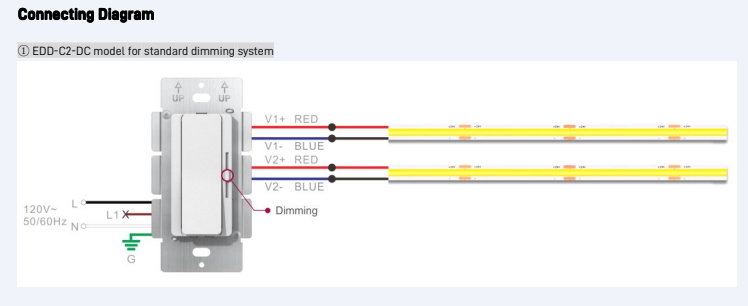

Electrical Diagram
